Rod End Uniball M14x1 5 left female

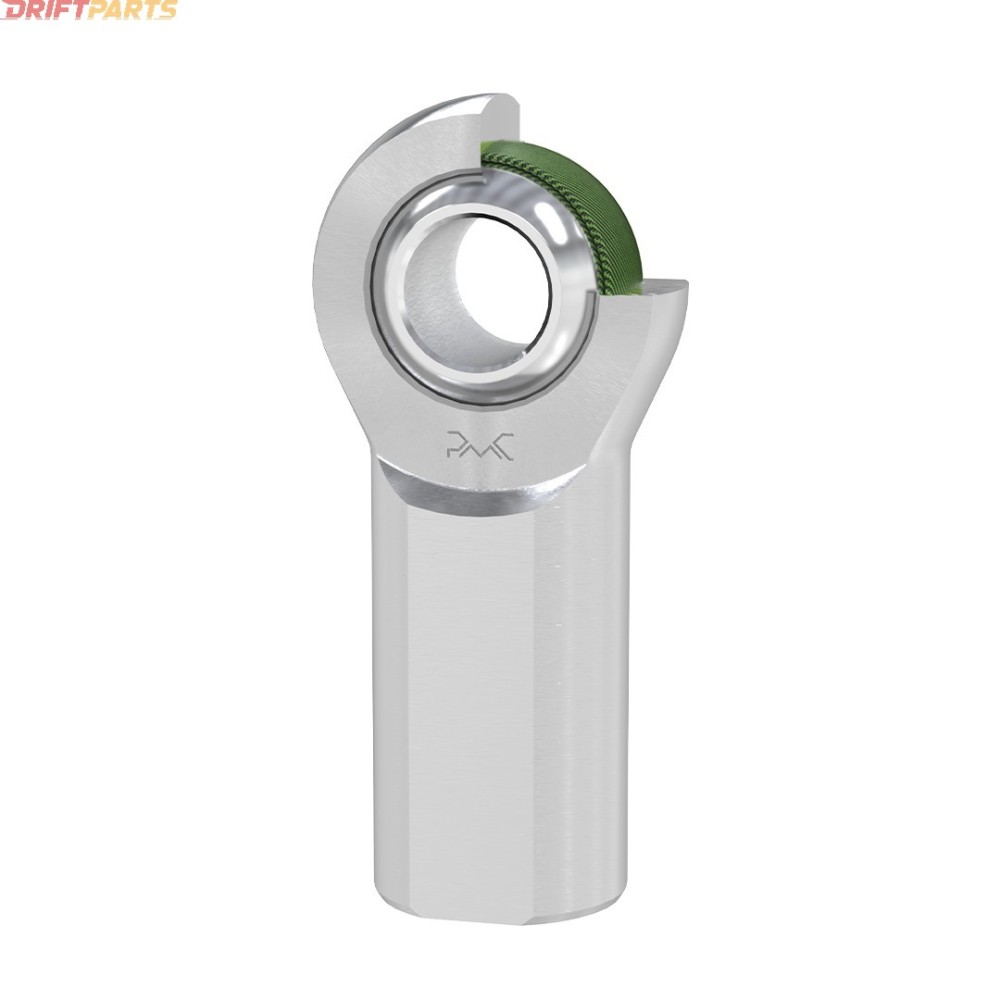

PMC Motorsport RS-Series Rod End / Uniball End - Left External Thread (Female) - M14x1.5

The PMC Motorsport RS-Series Rod End is a precision-engineered component specifically designed for applications requiring accurate and smooth load transmission, particularly in steering, suspension, and joint systems. This rod end features a left-hand M14x1.5 internal thread, ensuring compatibility with systems requiring such specifications. It is maintenance-free, corrosion-protected, and operates without the need for rubber boots, allowing for lubricant-free use, which significantly reduces maintenance requirements and associated costs.

Constructed to withstand substantial directional loads, this rod end is corrosion-resistant, making it highly suitable for extreme weather conditions, and it maintains a long operational lifespan even in demanding environments. The incorporation of PTFE (Polytetrafluoroethylene) provides the component with low friction, high-temperature resilience (-50°C to +150°C), chemical resistance, and excellent electrical insulation properties. PTFE fabric bearings are prevalent in hydraulic and pneumatic systems, automotive suspension and steering assemblies, agricultural machinery, and construction equipment joints.

Technical Specifications:

• Housing: Steel, heat-treated 25CrMo4 - 4130 - 1.7218, forged, with a galvanized (hard chrome) coating.
• Bearing Bushing: Nylon with PTFE, manufactured by injection molding.
• Ball: Bearing steel 52100, 100Cr6, 1.3505, SUJ2, EN31, hardened, with a galvanized (hard chrome) coating.
• External diameter of the rod head: 36 mm / 1.42"
• Width of the inner ring: 19 mm / 0.75"
• Width of the outer ring: 13.5 mm / 0.53"
• Length: 57 mm / 2.24"
• Thread length: 21 mm / 0.83"
• Angular displacement: 30°
• Maximum static load: 62.7 kN / 14095.5 lbs
• Maximum dynamic load: 55.6 kN / 12488.1 lbs
• Weight: 192g / 0.42 lbs

Brand: PMC Bearings

Symbol: PMC-M14x1.5L (F)

Producer Code: 5903707415878

Type: PMC Bearing RS Performance - Series

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
