Adapter Kit Audi ABZ manual 6 speed BMW M57n GS6 53DZ HGD JGA 240mm 9 45

The PMC Motorsport Adapter Kit facilitates the integration of an Audi ABZ engine with a ZF manual transmission, specifically the ZF Friedrichshafen models commonly found in BMW vehicles. This kit is engineered to meet the demands of both amateur and professional motorsport applications, ensuring dependable performance during complex engine swaps.

Compatibility Details:

• Engine: Audi ABZ
• Transmissions:
  • BMW ZF S6-53 GS6-53DZ 6-speed
  • BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ HGD (THGD)
  • BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ JGA (TJGA)
  • BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ HGE (THGE)
  • BMW M57n M57n2 (xDrive) ZF S6X53 GS6X53DZ JGB (TJGB)

Technical Specifications:

• Maximum Torque: 650Nm / 479.25 lb⋅ft (single disc configuration)
• Flywheel Type: Single Disc, 240mm / 9.45" diameter
• Materials: Constructed from aluminum and cast iron, ensuring full recyclability
• Male Spline Type: 32.5x35-26N
• Gear Ratios for ZF GS6-53DZ:
  • 1st: 5.080
  • 2nd: 2.804
  • 3rd: 1.260
  • 4th: 1.270
  • 5th: 1.000
  • 6th: 0.835
  • Reverse: 4.607

Installation and Maintenance:

• Professional installation is required, utilizing appropriate tools.

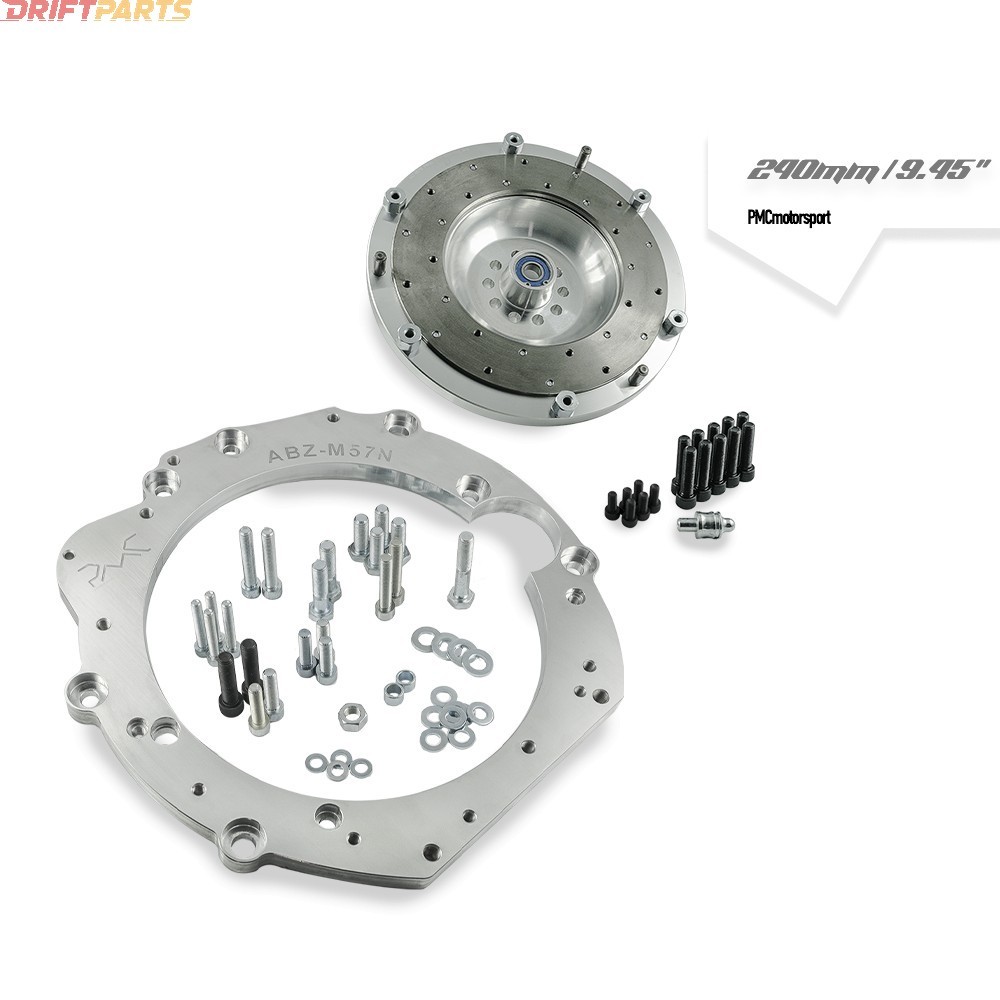

• The kit includes:
  • Aluminum gearbox adapter
  • Gearbox adapter bolts
  • Custom flywheel
  • Crankshaft bolts kit
  • Clutch cover-pressure plate bolts kit
  • Custom clutch fork pivot pin/ball
• The flywheel necessitates a ring gear/flywheel from the automatic Audi ABZ OE, which is not included.
• Replaceable Friction Surface: The cast iron surface is designed for easy replacement.

Certifications and Manufacturing:

• ISO PN-EN ISO 9001:2015 certified
• Manufactured in Poland

Recommended Components:

• Clutch Pressure Plate: Sachs Performance 88 308 200 1243 / 883082.001243, Sachs XTend 3000 951 952 (M57N M57N2)

Vehicle Compatibility:

• Suitable BMW models: E30, E36, E46, E34, E39, E90, E91, E92, E60, E61, E81, E82, E87
• Also compatible with select Nissan and Mazda RX-7 / RX-8 models

This adapter kit is tailored for high-power swap projects, offering durability and reliability with BMW ZF/Getrag transmissions known for their high torque capacity and rapid gear shifting capabilities.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
