Race Stage 3 Mercedes Benz M113 BMW M57N HGD JGA 184mm 7 25 P

The PMC Motorsport RACE STAGE 3 adapter kit facilitates the conversion of Mercedes-Benz V8 M113 engine series to BMW M57N M57N2 gearboxes, specifically the ZF GS6-53DZ HGD JGA E60 525D 530D 6-speed Diesel. This kit is particularly suited for motorsport applications or converting automatic transmissions to manual configurations.

Compatibility includes:

• Mercedes-Benz V8 M113 engines: 4.3, 5.0, AMG 5.4, and 5.4K.
• BMW M57N M57N2 gearboxes: models 23.00 7522205 GS6-53DZ HGD and 23.00 7565218 GS6-53DZ JGA.

Technical specifications:

• CNC machined with certified materials, developed in a CAD environment.
• Features a replaceable cast iron friction surface and a balanced, ultralight race-type flywheel (184mm / 7.25").

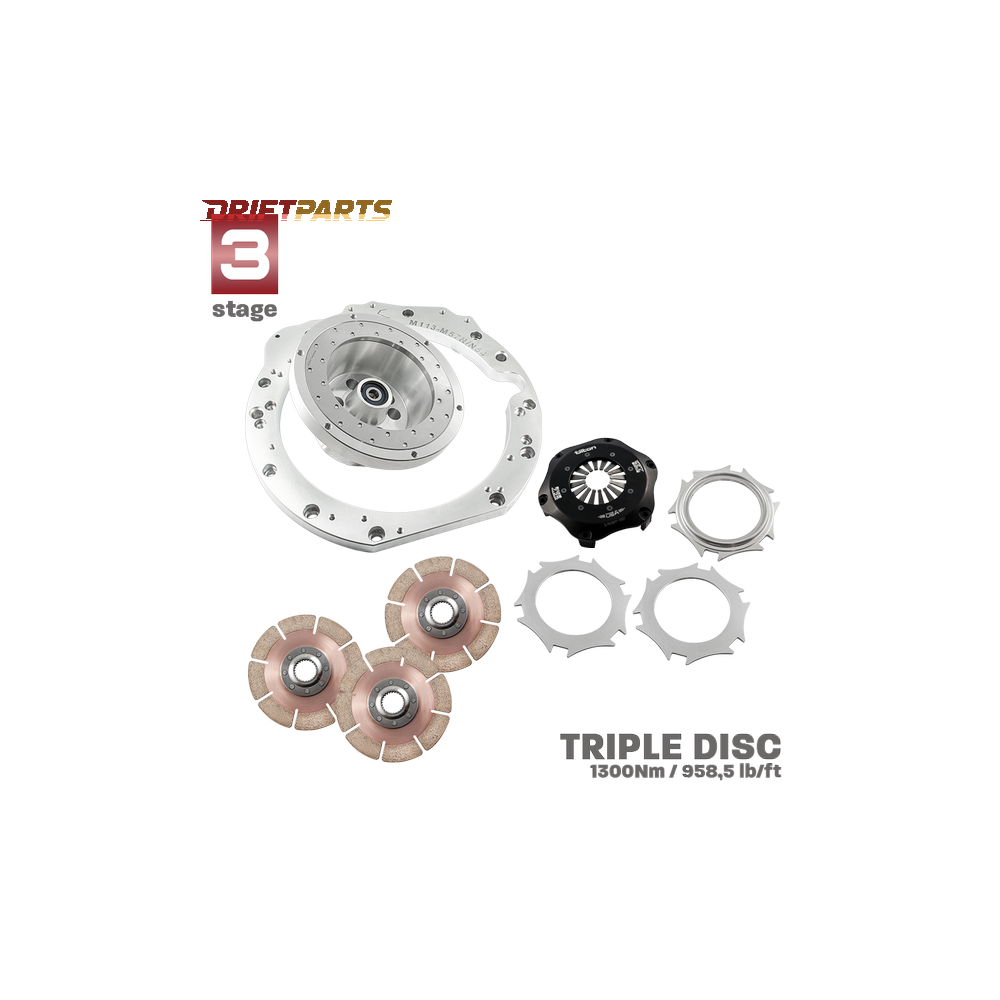

• Comprises an aluminum gearbox adapter, gearbox adapter bolts, custom flywheel, crankshaft bolts kit, clutch cover - pressure plate bolts kit, and a Tilton OT-II Cerametallic Pressure Plate 7.25" 66-312 HGG Twin disc (POT).

Installation guidelines:

• Requires the flywheel/ring gear from the automatic version; flywheel must be tightened to original equipment torque specifications.
• Clutch slave pump adaptation is necessary, either by altering to a smaller piston diameter or reducing pump stroke length.
• Shortening of the guide tube is required, and the release bearing along with clutch fork must be specific to the utilized gearbox.

Manufactured in the EU, this kit conforms to ISO certification standards and features a gearbox adapter thickness of 20mm / 0.78", providing a reliable solution for high-performance use.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
