Stage 1 Honda F F20C F22C Mazda RX 8 5 speed 240mm 9 45

The PMC Motorsport Stage 1 Adapter Kit facilitates the integration of Honda F20C and F22C (S2000) engines with the Mazda RX-8 5-speed manual transmission. This kit comprises a 240mm (9.45") single disc configuration, engineered to withstand a maximum torque of 400Nm (295 lb/ft).

Constructed from certified materials and crafted using CNC machining processes, the kit is produced in adherence to the ISO PN-EN ISO 9001:2015 standards, guaranteeing precision and quality.

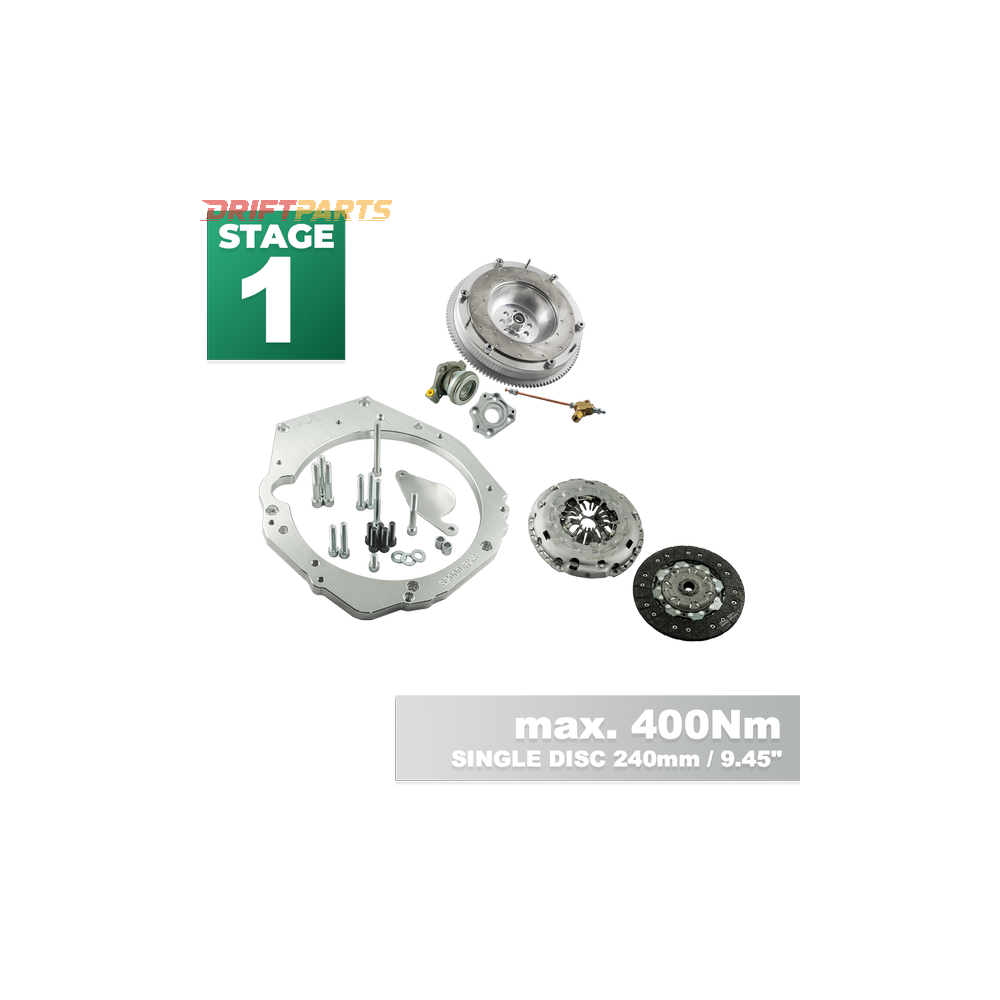

Included components:

• Aluminum gearbox adapter
• Gearbox adapter bolts
• Custom flywheel
• Clutch cover and pressure plate bolts kit
• Aluminum adapter for the central slave cylinder
• Pipe and tee

This adapter kit is suitable for both everyday driving and motorsport activities, including drifting. It features a replaceable friction surface and necessitates the use of a clutch fork and starter specific to the Honda F engine, which are not provided.

The included clutch set is the LUK 624 3297 09, designed to be self-adjusting, featuring a clutch disc with a spline specification of 23x26-23N and a spline count of 23. The gearbox adapter maintains a thickness of 20mm (0.78").

Manufactured within the European Union, the kit ensures precise alignment between the engine and gearbox.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
