Flywheel Toyota JZ 1JZ 2JZ BMW M57n ZF GS6 53DZ HGD JGA 228mm 8 98 Twin Disc

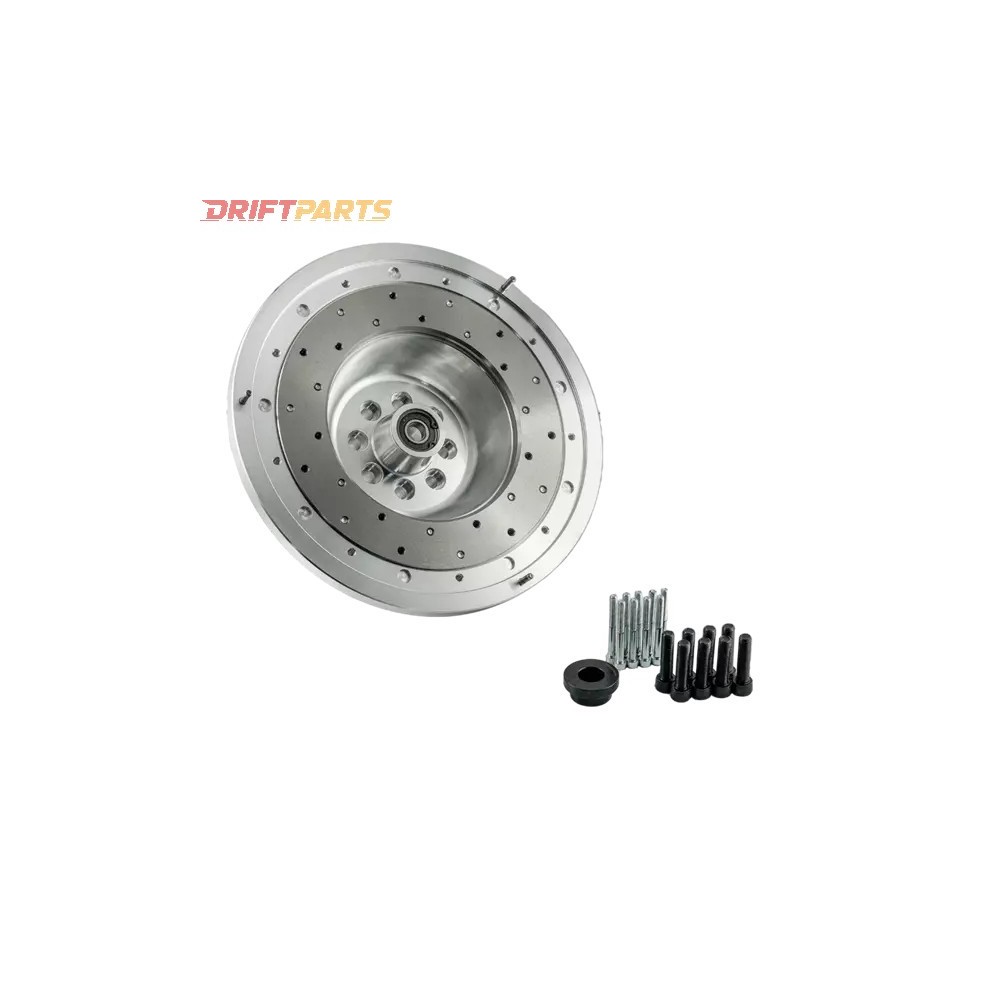

PMC Motorsport presents a precision-engineered lightweight aluminum flywheel, specifically designed to integrate Toyota JZ engines (1JZ, 2JZ) with BMW M57n ZF GS6-53DZ 6-speed diesel transmissions.

This product is compatible with a range of Toyota JZ engine variants, including:

• 1JZ-FSE
• 1JZ-GE
• 1JZ-GTE
• 2JZ-FSE
• 2JZ-GE
• 2JZ-GTE

It accommodates both non VVT-i and VVT-i configurations. It supports BMW transmission models such as the ZF S6-53 GS6-53DZ HGD and JGA, found in BMW E60 525D and 530D vehicles.

The flywheel incorporates a twin-disc design with a friction plate diameter of 228mm (8.98 inches) and features a replaceable cast iron friction surface for efficient maintenance. Pre-balanced to ensure peak performance, it includes a clutch shaft pilot bearing designed to stabilize the clutch shaft and reduce vibrations.

Installation necessitates specific components:

• Sachs 3000 951 019 clutch pressure plate
• Compatible clutch disc
• Release bearing
• Clutch fork
• Clutch slave cylinder for the gearbox

A Toyota JZ starter devoid of an additional pinion cover is required, along with a Toyota OE flexplate or ring gear (32101-30090 | 32101-22050) and a spacer (OE 32116-22020) between the engine block and flexplate.

The flywheel, weighing 5.05 kg (11.155 lbs), mandates a tightening torque of 72Nm with adhesive for secure flywheel bolt installation.

The package includes:

• Clutch cover
• Pressure plate bolts kit
• Crankshaft bolts kit

Manufactured in Poland, this product utilizes certified materials and CNC machining, upholding ISO PN-EN ISO 9001:2015 certification standards for quality assurance. It is suitable for both routine and professional motorsport applications.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse. For inquiries, contact DriftParts at info@driftparts.it.
