Adapter Kit Toyota JZ manual 6 speed BMW M57n GS6 53DZ HGD JGA 228mm 8 98 twin disc

The PMC Motorsport Adapter Kit facilitates the integration of a Toyota JZ 1JZ 2JZ engine with a BMW ZF manual transmission (ZF Friedrichshafen), specifically the 6-speed GS6-53DZ, making it a suitable solution for motorsport applications.

This kit is compatible with Toyota JZ 1JZ 2JZ engines, including variants such as:

• 1JZ (non VVT-i / VVT-i)
• 1JZ-FSE
• 1JZ-GE
• 1JZ-GTE
• 2JZ (non VVT-i / VVT-i)
• 2JZ-FSE
• 2JZ-GE
• 2JZ-GTE

It supports installation in BMW models like:

• E30
• E36
• E46
• E34
• E39
• E90
• E91
• E92
• E60
• E61
• E81
• E82
• E87

Along with other vehicles such as:

• Nissan S13
• S14
• S15
• PS13
• Mazda RX-7/RX-8

Key specifications include:

• Maximum Torque Capacity: 700Nm (516.12 lb⋅ft)
• Compatible Transmissions:
  • BMW ZF S6-53 GS6-53DZ 6-speed
  • BMW M57n M57n2 E60 530D ZF S6-53 GS6-53DZ HGD (THGD), JGA (TJGA)
  • Related ZF Friedrichshafen models
• Male Spline Type: 32.5x35-26N
• Gear Ratios for ZF GS6-53DZ:
  • 1st: 5.080
  • 2nd: 2.804
  • 3rd: 1.260
  • 4th: 1.270
  • 5th: 1.000
  • 6th: 0.835
  • Reverse: 4.607
• Flywheel: Constructed from aluminum and cast iron, recyclable; requires an automatic Toyota JZ ring gear/flywheel (not included)
• Clutch: Twin disc, 228mm (8.98") diameter, with a recommended clutch pressure plate Sachs 3000 951 019 BMW E60 M5

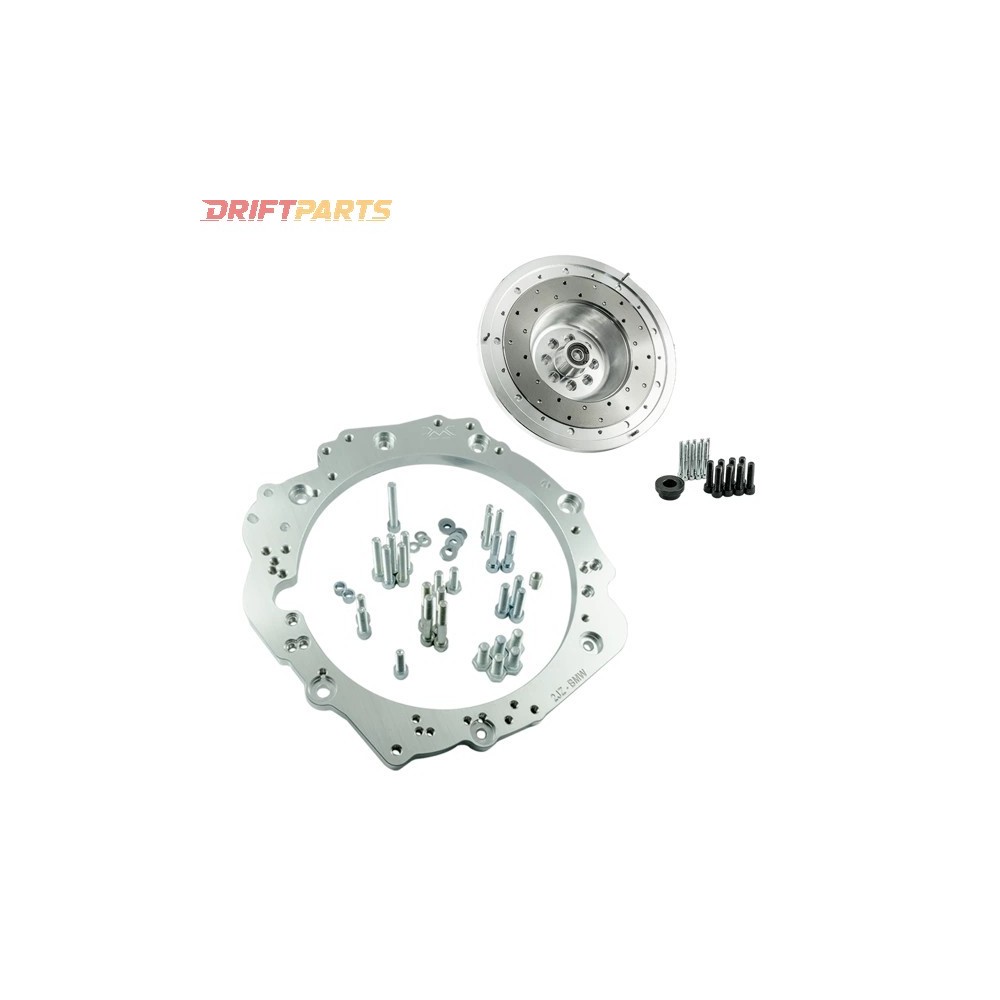

The kit includes:

• An aluminum gearbox adapter
• Gearbox adapter bolts
• A custom flywheel
• Crankshaft bolts kit
• Clutch cover-pressure plate bolts kit

The gearbox adapter thickness is 20mm (0.78"), and the flywheel weighs 5.05 kg (11.155 lbs). It features a replaceable friction surface. All components comply with ISO PN-EN ISO 9001:2015 standards.

Please note, this adapter kit is engineered for motorsport purposes and is not suited for public road use. Professional installation in a workshop environment utilizing appropriate tools is strongly recommended.

For further inquiries, contact DriftParts at info@driftparts.it.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
