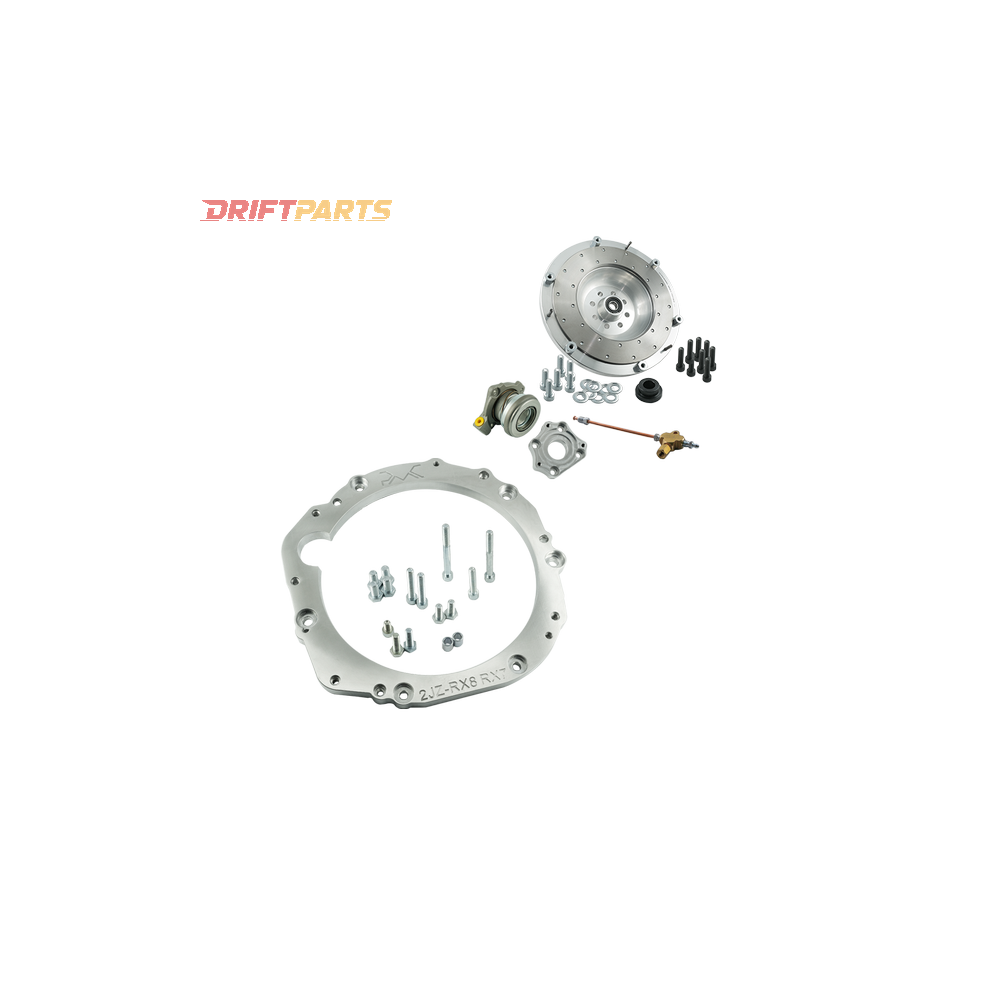

Adapter Kit Toyota JZ Mazda RX 7 FD 240mm 9 45

The PMC Motorsport Adapter Kit enables the integration of Toyota JZ engines, including the 1JZ and 2JZ variants (1JZ-FSE, 1JZ-GE, 1JZ-GTE, 2JZ-FSE, 2JZ-GE, and 2JZ-GTE, both non VVT-i and VVT-i versions), with the manual gearbox of a Mazda RX-7 FD. This kit is specifically engineered for precise alignment and reliable performance in diverse applications, including motorsport, daily driving, and drift scenarios.

Key Compatibility and Technical Details:

• Engine Compatibility: Toyota 1JZ and 2JZ series.
• Gearbox Compatibility: Mazda RX-7 FD manual gearbox.
• Flywheel Requirement: Utilizes the flywheel/ring gear from the automatic Toyota 1JZ/2JZ, incorporating a 4.5mm spacer (OE 32116-22020) between the engine block and ring gear.
• Clutch System: Requires BMW M57/M57N/N54 E46 M3 clutch pressure plate and clutch disc from LUK set 624 3297 09 - LUK 324 0430 10. Recommended clutch pressure plates include Sachs Performance 88 308 200 1243 or Sachs XTend 3000 951 877/952.
• Spline Dimensions: 23x26-23N with a 23 spline count.
• Release Bearing and Clutch Fork: Specifically designed for the intended gearbox.
• Starter: Utilizes the OE Toyota JZ starter without an additional pinion cover.
• Flexplate/Ring Gear: Compatible with Toyota OE 32101-30090 | 32101-22050, requiring one spacer OE 32116-22020.
• Adapter Specifications: The gearbox adapter features a thickness of 20mm (0.78").
• Torque Specifications: Flywheel torque specification is 72Nm (53.1 ft·lb) with adhesive.
• Replaceable Friction Surface: The adapter kit includes a replaceable friction surface for extended usability.

Manufactured in the EU, this adapter kit meets stringent quality standards and is ISO PN-EN ISO 9001:2015 certified. Each component undergoes rigorous measurements and testing to ensure superior performance and reliability. The kit is available for purchase as a complete set or as individual spare parts through DriftParts.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
