Stage 1 Honda F F20C F22C Mazda RX 8 6 speed 240mm 9 45

PMC Motorsport Stage 1 Adapter Kit facilitates the conversion of Honda F20C and F22C engines from the S2000 series for compatibility with the Mazda RX-8 6-speed manual transmission. This kit includes an aluminum adapter designed to accurately align these specific engines with the RX-8 gearbox, suitable for both everyday use and motorsport applications.

Technical Specifications:

• Maximum Torque Capacity: 400 Nm / 295 lb/ft
• Flywheel Type: Single Disc, Diameter 240 mm / 9.45"
• Clutch Set: LUK 624 3297 09, featuring a self-adjusting mechanism and a clutch disc with a spline specification of 23x26-23N, including a 23-spline count
• Gearbox Adapter Thickness: 20 mm / 0.78"
• Replaceable Friction Surface

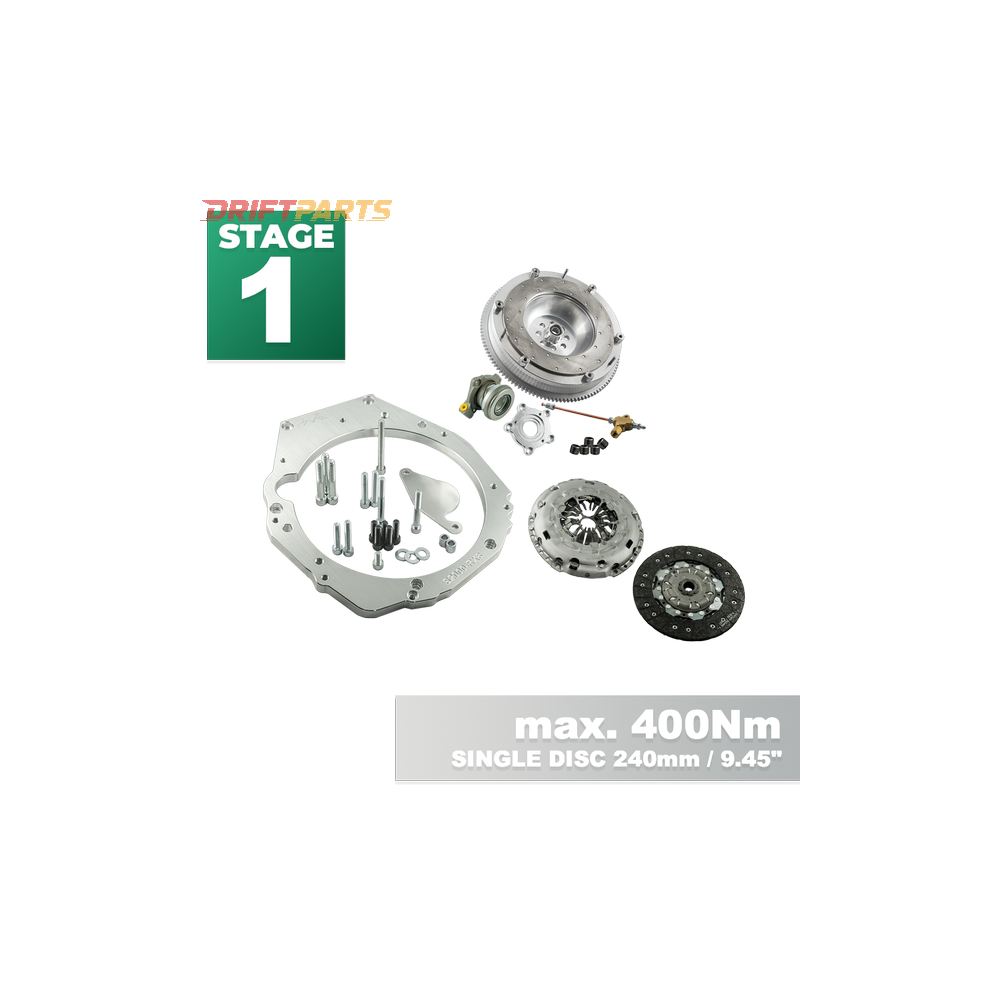

Kit Components:

• Aluminum Gearbox Adapter
• Gearbox Adapter Bolts
• Custom Flywheel
• Clutch Cover
• Pressure Plate Bolts Kit
• Aluminum Adapter for Central Slave Cylinder
• Pipe and Tee

The kit is crafted using certified materials and advanced CNC machining, adhering to high-quality standards verified by the ISO PN-EN ISO 9001:2015 certification. It is suitable for diverse applications, including motorsport, daily driving, and drifting. Manufactured in the EU, the product features a production Seriesl number for quality assurance.

Additional components required include the Honda F OE starter and clutch fork, which are not included in the kit. Product sales codes are K0RX8-6-F-F (3943) and F0RX8-F (3665).

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
