Wishbone Arm Threaded Steel Tube 25x2 9 0 99x0 11 170mm 6 69 Uniball

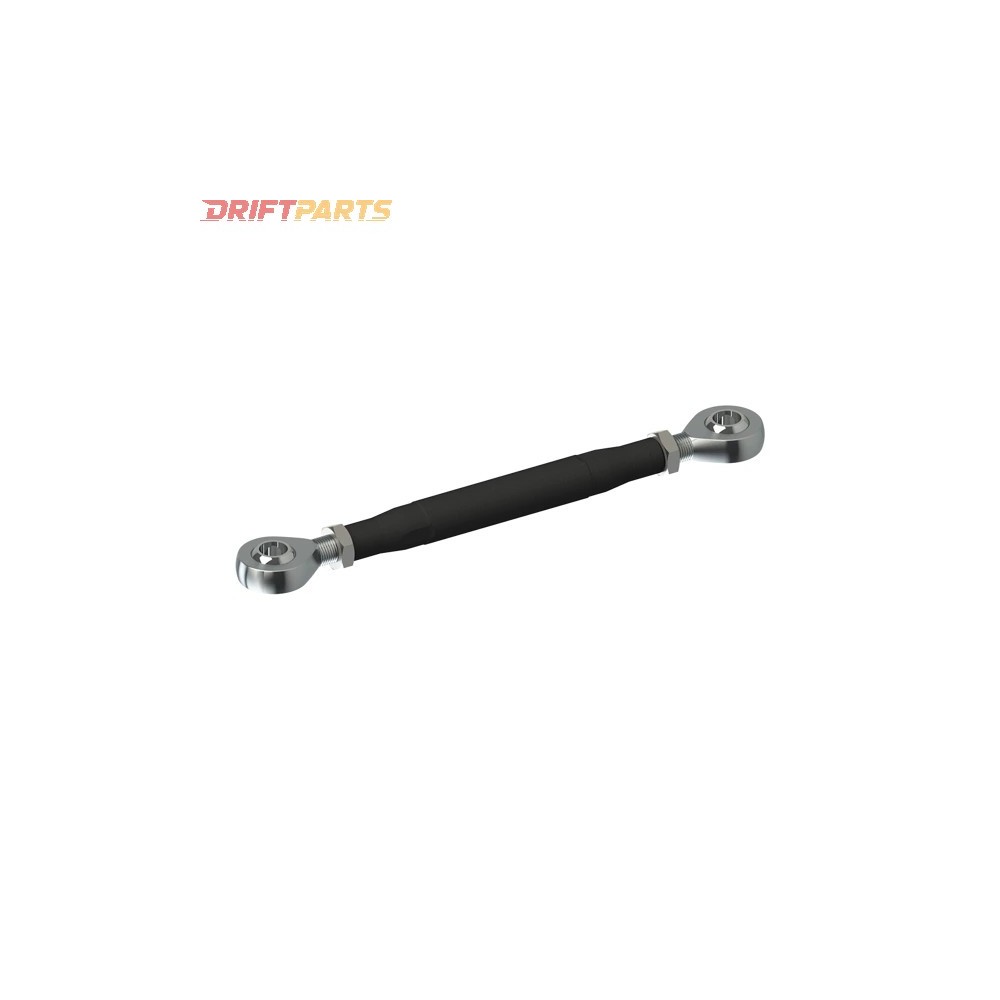

The PMC Motorsport Steel Arm/Tube with Adjustable Uniball Joint is engineered to meet the rigorous demands of motorsport applications, offering high durability and adaptability. It features an outer diameter of 25mm (0.99") and a wall thickness of 2.9mm (0.11"), crafted from robust steel to endure extreme forces. A black powder coating provides corrosion resistance, ensuring prolonged service life even under adverse conditions.

This component is equipped with M16x1.5 threads on both ends, accommodating left and right-hand threads, which facilitates versatile adjustments and connections in suspension or steering systems. Its precise dimensions ensure a secure fit, thereby enhancing vehicle stability and performance. It is suitable for fabricating custom suspension links or adjustable control arms.

The uniball joint specification includes a maintenance-free design, reducing upkeep and associated costs. It holds a high load capacity, making it suitable for transmitting substantial static directional loads. The joint's corrosion resistance allows for operation in harsh weather conditions, and its extended service life guarantees reliability in demanding environments.

The housing, made from heat-treatable steel (25CrMo4 - 4130 - 1.7218), is forged and coated with a galvanic hard chrome finish. The bearing liner is constructed from injection-molded Nylon with PTFE Teflon, and the ball is made from hardened bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31) with a galvanic hard chrome coating.

Technical Specifications:

• Brand: PMC MOTORSPORT
• Symbol: PMC-RG-B-170U
• Outer Tube Diameter: 25mm / 0.99"
• Wall Thickness: 2.9mm / 0.11"
• Arm Length: 170mm / 6.69"
• Adjustment Range: 244-270mm / 9.61" - 10.63"
• Tensile Strength: 4825 kg
• Critical Force (Compression Strength): 4752 kg
• Coefficient χ: 0.985
• Critical Stress σcr: 231.45 MPa
• Critical Force Pcr: 46.60 kN / 4751.93 kg

Uniball Dimensions:

• Type: PMC Bearing RS Performance Series
• Thread: M16x1.5
• External Diameter of the Rod Head: 42mm / 1.65"
• Width of the Inner Ring: 21mm / 0.83"
• Width of the Outer Ring: 15mm / 0.59"
• Length: 66mm / 2.60"
• Thread Length: 37mm / 1.46"
• Angular Displacement: 28°
• Maximum Static Load: 73.7 kN / 16568.42 lbs
• Maximum Dynamic Load: 69.3 kN / 15579.26 lbs

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
