Wishbone Arm Threaded Steel Tube 25x2 9 0 99x0 11 240mm 9 45 Uniball

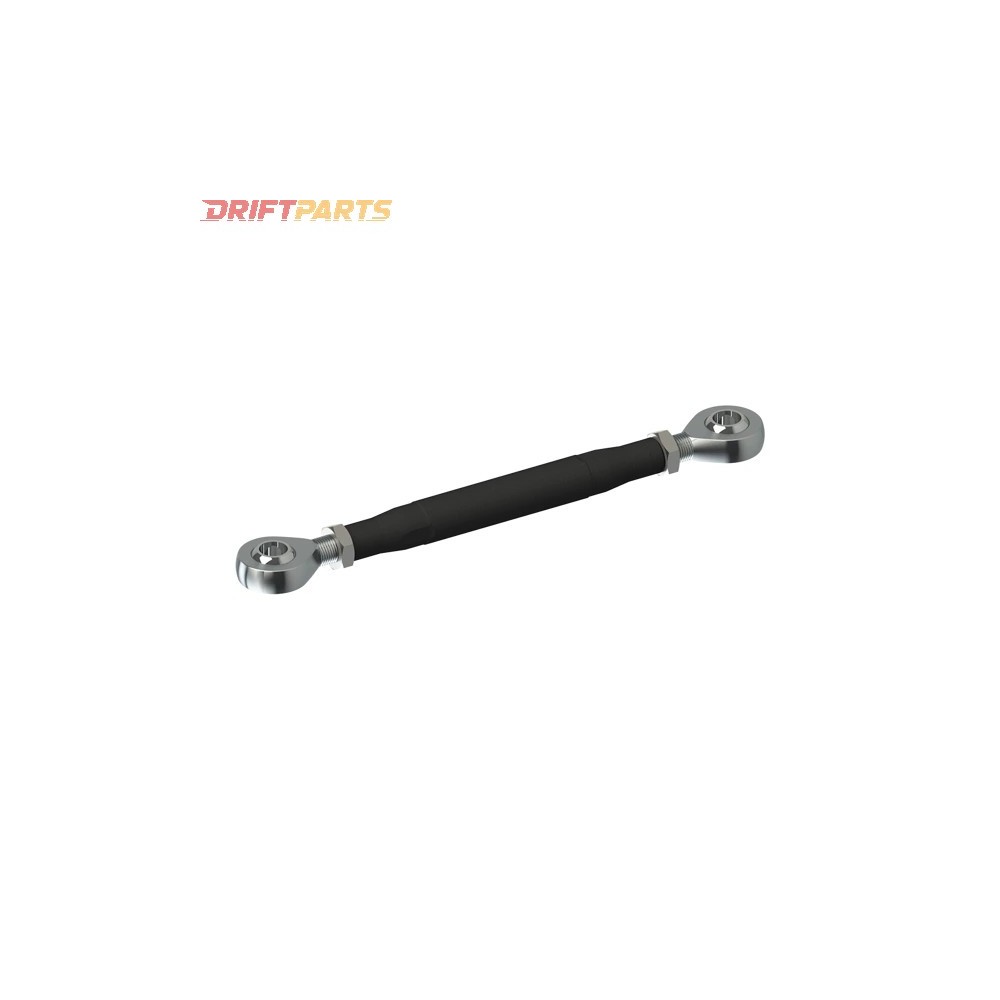

The PMC Motorsport threaded steel arm/tube is engineered for high-performance motorsport applications, providing robust durability and strength. It features an outer diameter of 25mm (0.99") and a wall thickness of 2.9mm (0.11"). The component is constructed from steel with a black powder coating, offering corrosion resistance ideal for challenging environments.

The arm includes M16x1.5 threads on both ends, facilitating versatile adjustments and connections within suspension or steering systems. This makes it particularly effective for constructing custom suspension links or adjustable control arms, providing reliable performance.

The integrated maintenance-free Uniball joint features corrosion protection and eliminates the need for rubber boots. It is designed to handle high load capacities, making it suitable for large static directional loads. The joint housing is made from heat-treatable steel (25CrMo4 - 4130 - 1.7218) with a galvanic hard chrome coating. The bearing liner is injection-molded from Nylon with PTFE Teflon, and the ball is comprised of hardened bearing steel (52100, 100Cr6, 1.3505, SUJ2, EN31) with a galvanic hard chrome coating.

Additional specifications include:

• Arm Length: 240mm (9.45")
• Adjustment Range: 314-340mm (12.36" - 13.39")
• Tensile Strength: 4825 kg
• Critical Force (Compression Strength): 4520 kg
• Maximum Static Load: 73.7 kN (16568.42 lbs)
• Maximum Dynamic Load: 69.3 kN (15579.26 lbs)

This product is part of the PMC Bearing RS Performance Series, ensuring precise construction that contributes to the vehicle's stability and performance.

This product is intended for racing use only. DriftParts is not liable for improper installation or misuse.
